Test Sheet: X.Touch 2.0
Yocto Version
This test sheet targets the scarthgap release of the ST BSP. If you are working on a different Yocto version, refer to the corresponding test sheet on the meta-engicam-st branch for your release.

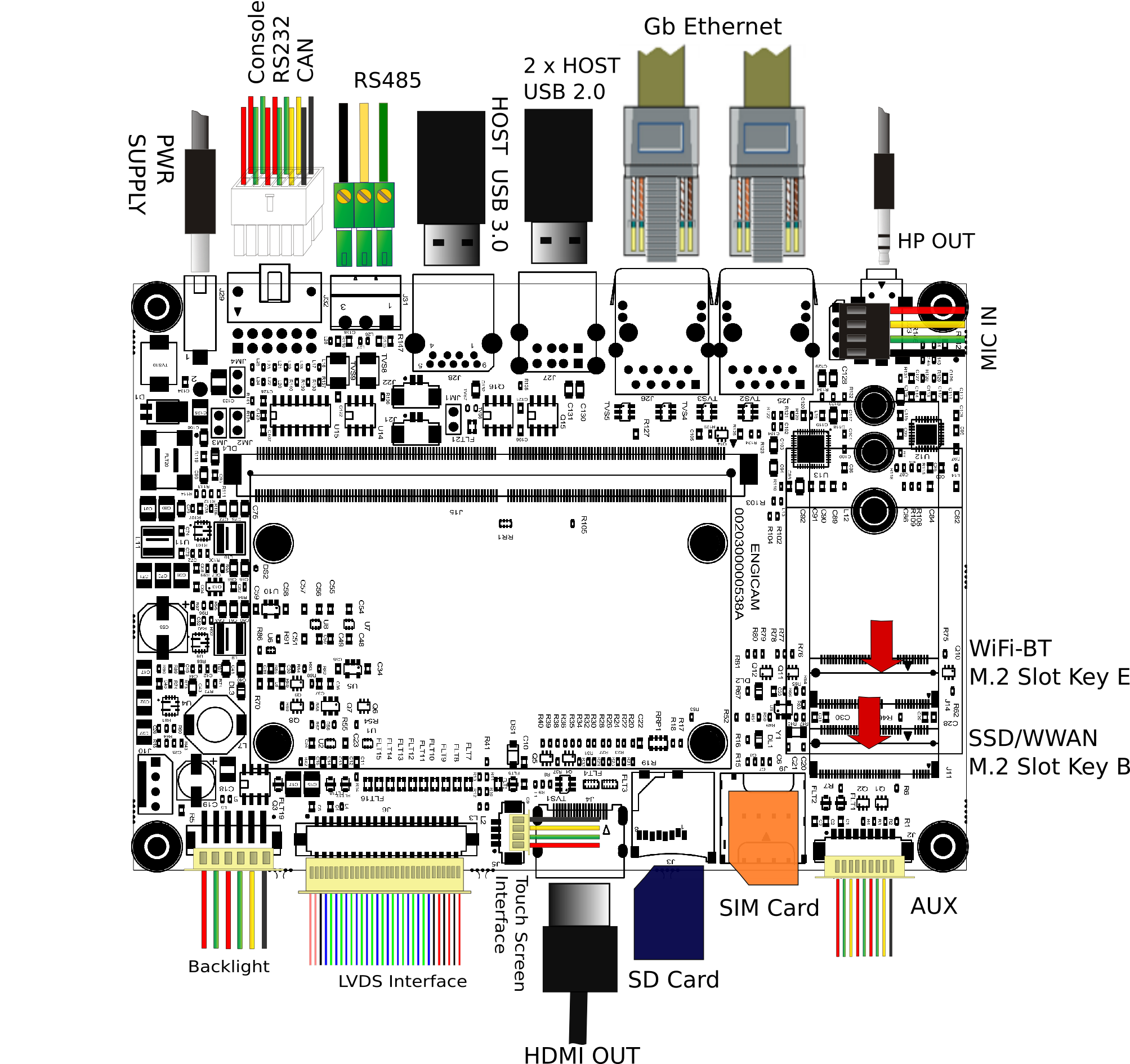

Test Sheet SmarCore STM32MP2 — X.Touch 2.0
Kernel
| Status | Test | Notes |
|---|---|---|
| OK | Ethernet 1 | end1 |
| OK | Ethernet 2 | end0 |
| OK | USB | |
| OK | MMC card | |
| OK | EMMC Flash | |
| OK | Display | |
| OK | UART 232 | ttySTM1 |
| OK | UART 485 | ttySTM2 |
| OK | Linux Console | ttySTM0 |
| OK | CANBUS1 | |
| TBT | CANBUS2 | |
| TBT | WIFI SOM | |
| OK | WIFI PCIe | |
| TBT | Bluetooth | |
| OK | Touchscreen | |
| OK | Backlight Control |
Debug Console
Connect to the debug console on connector J32 (pins 1-2).
UART 232
On J32 connector close TX with RX (pins 11-12) and use minicom on ttySTM1 to test local echo.
UART 485
Tested /dev/ttySTM2 (connector J31) with another RS485 device. Configure minicom:
Configure the Serial Port Setup as shown:
Wi-Fi PCIe
Tested using Intel Dual Band Wireless-AC 8265 Wi-Fi module (M.2 key E) on connector J14. Drivers load at boot time, or manually:
insmod /lib/modules/6.1.82/kernel/drivers/net/wireless/intel/iwlwifi/iwlwifi.ko firmware=iwlwifi-8265-34.ucode
insmod /lib/modules/6.1.82/kernel/net/mac80211/mac80211.ko
insmod /lib/modules/6.1.82/kernel/drivers/net/wireless/intel/iwlwifi/mvm/iwlmvm.ko
ifconfig end0 down
ifconfig end1 down
echo "nameserver 8.8.8.8" > /etc/resolv.conf
ifconfig wlan0 up
iw dev wlan0 scan | grep SSID
wpa_passphrase SSID password > /etc/wpa_supplicant.conf
wpa_supplicant -iwlan0 -Dnl80211 -c/etc/wpa_supplicant.conf -B
udhcpc -i wlan0
ip route add default via <gateway_IP> dev wlp1s0
ping -Iwlp1s0 8.8.8.8
Bluetooth
brcm_patchram_plus --patchram /lib/firmware/brcm/BCM43430A1.hcd --enable_hci \
--no2bytes --tosleep 1000 --baudrate 3000000 \
--use_baudrate_for_download /dev/ttyUSB0 &
hciconfig hci0 up
bluetoothctl
agent on
scan on
CAN Interfaces
Connect the CANBUS connectors on J32 (pins 7-8).
ip link set can0 type can bitrate 125000
ip link set can1 type can bitrate 125000
ifconfig can0 up
ifconfig can1 up
cansend can0 123#1122334455667788
candump can0
cansend can1 123#1122334455667788
candump can1
