Test Sheet: Tia Camera Board

Yocto Version

This test sheet targets the scarthgap release of the Mediatek BSP. If you are working on a different Yocto version, refer to the corresponding test sheet on the meta-engicam-mediatek branch for your release.

Test Sheet: Tia Genio 720 Camera Board

Version: 1.0

Linux Console

Console Baud Rate
Linux Console 921600

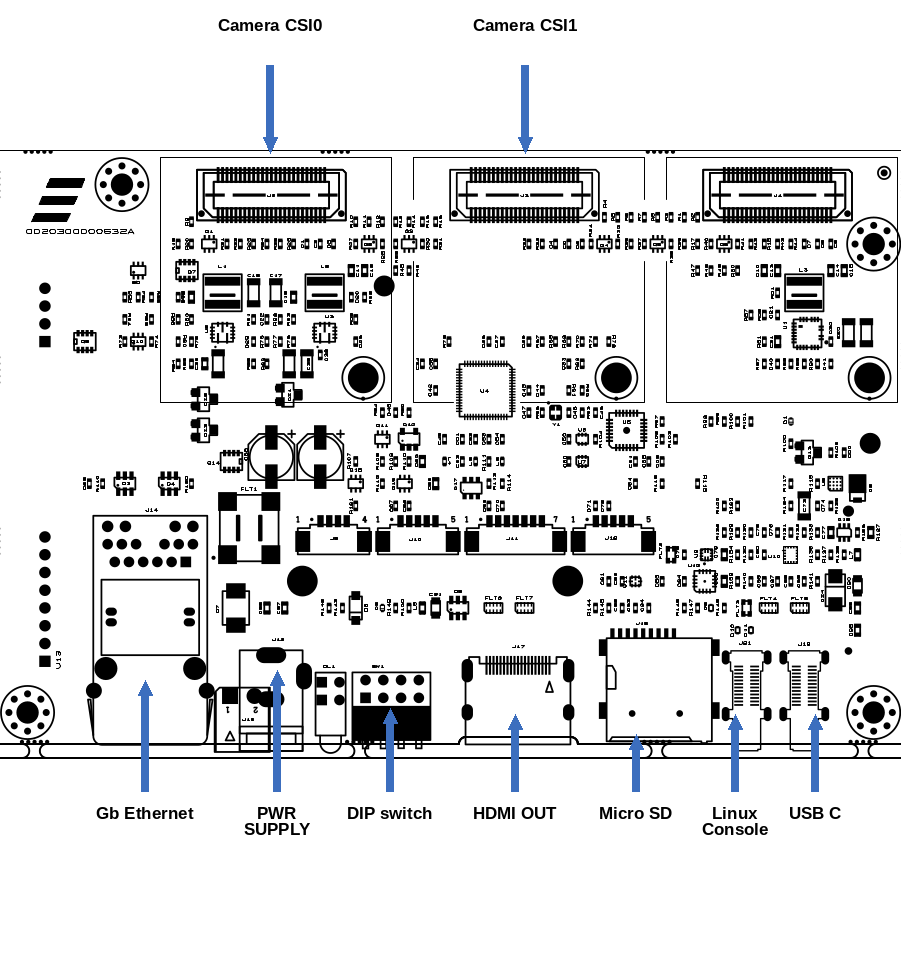

Board Type: Tia Camera Board

SOM Type: Tia Genio 720



U-Boot Tests

Test Status
UFS Environment Saving OK
eMMC Environment Saving OK
NORBOOT Environment Saving OK
Ethernet TBT
Boot from UFS or eMMC OK
Boot from NORBOOT OK
Serial Download OK

Test Notes

UFS Environment Saving

setenv serverip 192.168.2.93
saveenv
# Saving Environment to scsi... Writing to SCSI device(1)... OK
reset board
printenv serverip

eMMC Environment Saving

setenv serverip 192.168.2.93
saveenv
# Saving Environment to MMC... Writing to MMC(0)... OK
reset board
printenv serverip

NORBOOT Environment Saving

setenv serverip 192.168.2.93
saveenv
# Saving Environment to SPIFlash... Erasing SPI flash...Writing to SPI flash...done
reset board
printenv serverip

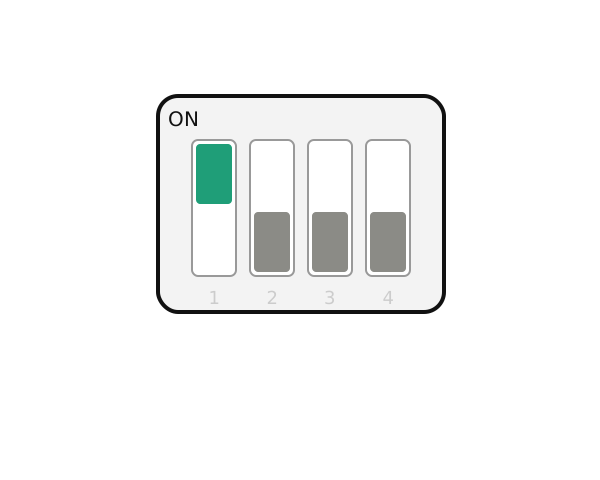

Boot from UFS or eMMC

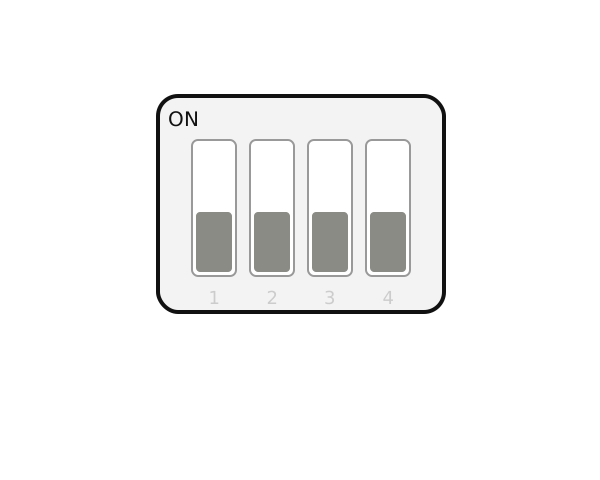

Boot from NORBOOT

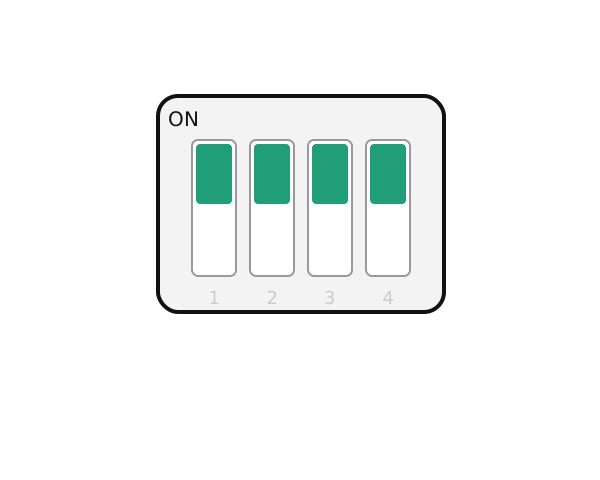

Serial Download


Set SW1 to enable serial download. Connect the board to the host machine using the board's OTG header J18. Power on the board and execute:

genio-flash -i rity-demo-image

Linux Kernel Tests

Status Test Note
OK Ethernet (J14) See Note 1
OK SDCARD See Note 2
OK Linux Console (J21)
OK RTC See Note 3
OK Reboot
OK HDMI
OK M.2 Key M PCIe See Note 4
OK MIPI-CSI (J2) See Note 5
OK MIPI-CSI (J3) See Note 6
OK USB-C (J18) See Note 7

Notes

Note 1: Ethernet Verification

Connect the board's Ethernet port to your host machine.

On the host machine, start the iperf3 server:

iperf3 -s

On the board, launch iperf3 in client mode using the host machine's IP address:

iperf3 -c 10.24.1.74

Expected Output:

Connecting to host 10.24.1.74, port 5201
[  5] local 10.24.67.160 port 34174 connected to 10.24.1.74 port 5201
[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   113 MBytes   950 Mbits/sec   18    229 KBytes
[  5]   1.00-2.00   sec   112 MBytes   941 Mbits/sec    9    276 KBytes
[  5]   2.00-3.00   sec   110 MBytes   925 Mbits/sec   88    212 KBytes
[  5]   3.00-4.00   sec   112 MBytes   942 Mbits/sec   18    219 KBytes
[  5]   4.00-5.00   sec   111 MBytes   931 Mbits/sec    9    356 KBytes
[  5]   5.00-6.00   sec   112 MBytes   938 Mbits/sec    9    287 KBytes
[  5]   6.00-7.00   sec   111 MBytes   931 Mbits/sec    9    262 KBytes
[  5]   7.00-8.00   sec   111 MBytes   934 Mbits/sec    9    274 KBytes
[  5]   8.00-9.00   sec   112 MBytes   938 Mbits/sec    9    270 KBytes
[  5]   9.00-10.01  sec   112 MBytes   927 Mbits/sec    6    344 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.01  sec  1.09 GBytes   936 Mbits/sec  184            sender
[  5]   0.00-10.02  sec  1.09 GBytes   934 Mbits/sec                  receiver

iperf Done.

Note 2: SD Card Detection

Verify SD card detection logs via kernel output:

mmc1: host does not support reading read-only switch, assuming write-enable
mmc1: new high speed SDHC card at address 2145
mmcblk1: mmc1:2145  29.1 GiB
 mmcblk1: p1 p2

Note 3: RTC Initialization

Set the system time and date, then write it to the hardware clock:

date -s "2026-08-20 11:35:00"
hwclock -w -f /dev/rtc0
Power cycle the board. Once booted, verify that the hardware clock retained the correct date and time:
hwclock -r -f /dev/rtc0

Note 4: PCI Device Verification (lspci)

To verify the connected hardware on the PCI bus, run the following command:

lspci

Expected Output:

00:00.0 PCI bridge: MEDIATEK Corp. Device 8189 (rev 01)
01:00.0 Non-Volatile memory controller: Innodisk Corporation PCIe 3TE6 Controller (DRAM-less) (rev 01)

Note 5: MIPI-CSI Camera Test (J2 Interface)

Configure and initialize the camera sensor connected to the J2 interface slot:

export MEDIA_DEV=$(v4l2-ctl -z platform:$(basename `find /sys/bus/platform/devices/ -name "*seninf-top"`) --list-devices | grep media)

declare -a VIDEO_DEV=($(for i in `find /sys/bus/platform/devices/ -name "*camsv*" | sort`; do media-ctl -d ${MEDIA_DEV} --entity "`basename $i` video stream" ; done))

media-ctl -d ${MEDIA_DEV} -l "'ov5640 7-003c':0 -> 'seninf-0':0 [1]"
media-ctl -d ${MEDIA_DEV} -l "'seninf-0':1 -> '1a092000.camsv2':0 [1]"
media-ctl -d ${MEDIA_DEV} -V "'ov5640 7-003c':0 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'seninf-0':1 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'1a092000.camsv2':1 [fmt:YUYV8_1X16/1920x1080 field:none]"

gst-launch-1.0 v4l2src device=${VIDEO_DEV[0]} ! video/x-raw,width=1920,height=1080,format=YUY2 ! v4l2convert output-io-mode=dmabuf-import ! video/x-raw,width=1280,height=720 ! fpsdisplaysink video-sink=waylandsink sync=false

Note 6: MIPI-CSI Camera Test (J3 Interface)

Configure and initialize the camera sensor connected to the J3 interface slot:

export MEDIA_DEV=$(v4l2-ctl -z platform:$(basename `find /sys/bus/platform/devices/ -name "*seninf-top"`) --list-devices | grep media)

declare -a VIDEO_DEV=($(for i in `find /sys/bus/platform/devices/ -name "*camsv*" | sort`; do media-ctl -d ${MEDIA_DEV} --entity "`basename $i` video stream" ; done))

media-ctl -d ${MEDIA_DEV} -l "'ov5640 8-003c':0 -> 'seninf-1':0 [1]"
media-ctl -d ${MEDIA_DEV} -l "'seninf-1':1 -> '1a093000.camsv3':0 [1]"
media-ctl -d ${MEDIA_DEV} -V "'ov5640 8-003c':0 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'seninf-1':1 [fmt:YUYV8_1X16/1920x1080 field:none]"
media-ctl -d ${MEDIA_DEV} -V "'1a093000.camsv3':1 [fmt:YUYV8_1X16/1920x1080 field:none]"

gst-launch-1.0 v4l2src device=${VIDEO_DEV[1]} ! video/x-raw,width=1920,height=1080,format=YUY2 ! v4l2convert output-io-mode=dmabuf-import ! video/x-raw,width=1280,height=720 ! fpsdisplaysink video-sink=waylandsink sync=false

Note 7: USB-C (J18)

HOST: use usb-c hub with usb stick

[  497.022144] usb 1-1.3: new high-speed USB device number 7 using xhci-mtk
[  497.147629] usb-storage 1-1.3:1.0: USB Mass Storage device detected
[  497.149571] scsi host1: usb-storage 1-1.3:1.0
[  498.175010] scsi 1:0:0:0: Direct-Access     Intenso  Rainbow Line     5.20 PQ: 0 ANSI: 2
[  498.180403] sd 1:0:0:0: [sdd] 30720000 512-byte logical blocks: (15.7 GB/14.6 GiB)
[  498.182680] sd 1:0:0:0: [sdd] Write Protect is off
[  498.183900] sd 1:0:0:0: [sdd] No Caching mode page found
[  498.184589] sd 1:0:0:0: [sdd] Assuming drive cache: write through
[  498.203746]  sdd: sdd1 sdd2 sdd3 sdd4
[  498.204893] sd 1:0:0:0: [sdd] Attached SCSI removable disk

DEVICE: use ethernet gadget with mediatek

usb0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.96.1  netmask 255.255.255.0  broadcast 192.168.96.255
        inet6 fe80::a4d9:45a6:4554:f54  prefixlen 64  scopeid 0x20<link>
        ether 0a:c7:0d:37:1e:23  txqueuelen 1000  (Ethernet)
        RX packets 123  bytes 13919 (13.5 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 174  bytes 27768 (27.1 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

PC HOST:

ping -c 5 192.168.96.1
PING 192.168.96.1 (192.168.96.1) 56(84) bytes of data.
64 bytes from 192.168.96.1: icmp_seq=1 ttl=64 time=0.250 ms
64 bytes from 192.168.96.1: icmp_seq=2 ttl=64 time=0.293 ms
64 bytes from 192.168.96.1: icmp_seq=3 ttl=64 time=0.246 ms
64 bytes from 192.168.96.1: icmp_seq=4 ttl=64 time=0.301 ms
64 bytes from 192.168.96.1: icmp_seq=5 ttl=64 time=0.241 ms

--- 192.168.96.1 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4107ms
rtt min/avg/max/mdev = 0.241/0.266/0.301/0.025 ms
