Test Sheet: MicroGea Evaluation Board
Yocto Version
This test sheet targets the walnascar release of the NXP BSP. If you are working on a different Yocto version, refer to the corresponding test sheet on the meta-engicam-nxp branch for your release.
Test sheet MicroGEA MX91 + MicroGEA Evaluation Board
Test sheet
Version: 1.0
Preliminary
Creation of engicam-evaluation-image-mx91 image for sdcard booting and same image for eMMC programming.

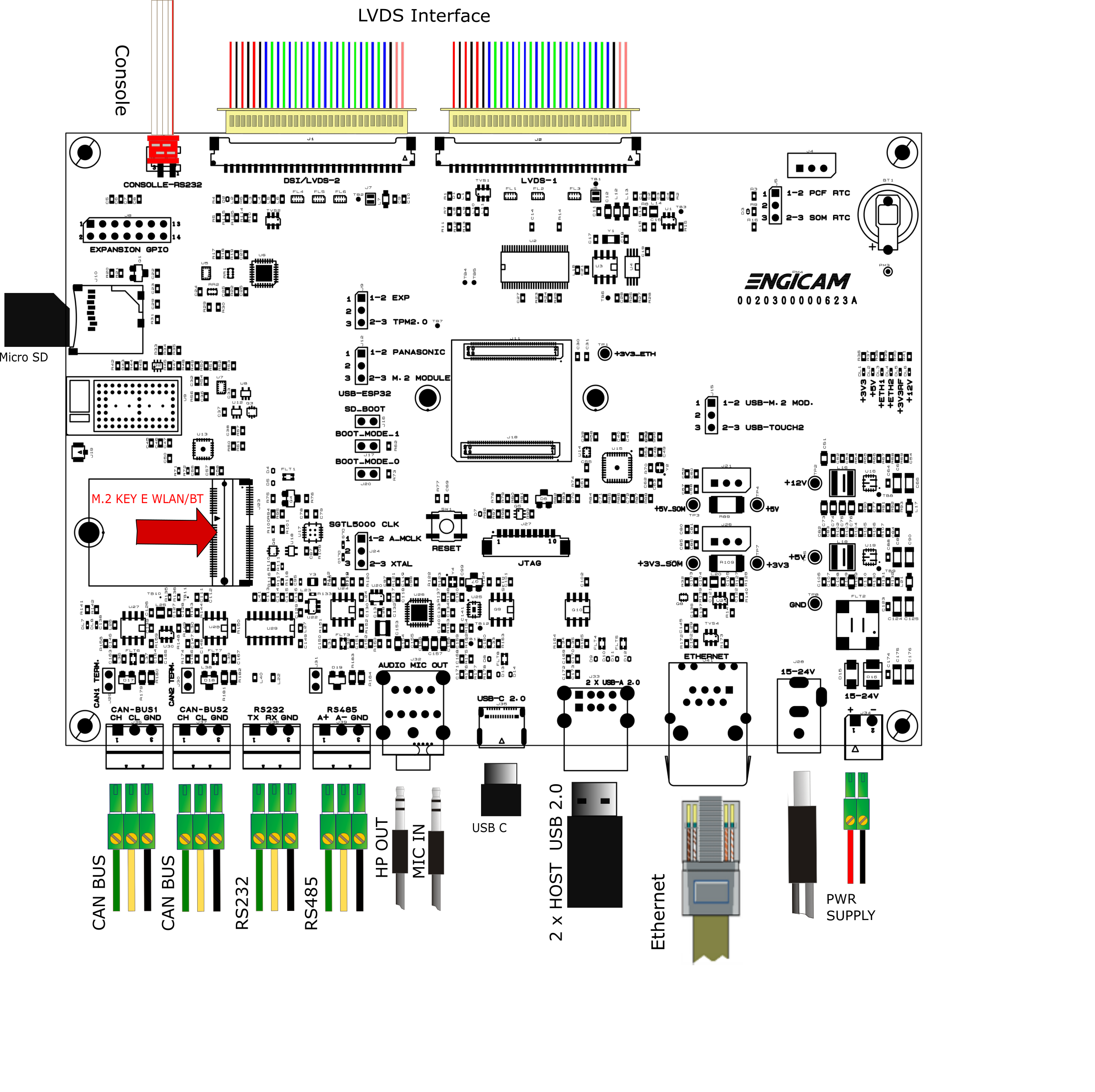

Board Type: MicroGEA Evaluation Board
SOM Type: MicroGEA MX91
U-boot tests
| Test | Status |
|---|---|
| eMMC Enviroment saving | OK |
| Sdcard Enviroment saving | OK |
| Ethernet | OK |
| Boot from eMMC | OK |
| Boot from sdcard | OK |
| USB | OK |
| Serial Download | TBT |
Test Notes:
eMMC Environment saving
Sdcard environment saving
Close the connector JM1:
Ethernet
Once the serverip has been saved:
The output should be:
Boot from eMMC
Open the connector JM1:
The output should be:
Boot from sdcard
Close the connector JM1:
The output should be:
USB
Plug USB storage devices in J33 connectors (J35 is not enabled in u-boot for USB bus 0 is in peripheral mode for OTG serial download):
The output should be:
starting USB...
Bus usb@4c100000: Port not available.
Bus usb@4c200000: USB EHCI 1.00
scanning bus usb@4c200000 for devices... 4 USB Device(s) found
scanning usb for storage devices... 2 Storage Device(s) found
The output should be (for example):
USB device tree:
1 Hub (480 Mb/s, 0mA)
| u-boot EHCI Host Controller
|
+-2 Hub (480 Mb/s, 2mA)
|
+-3 Mass Storage (480 Mb/s, 100mA)
| Lexar USB Flash Drive AAGQFTGHNCK9GDXE
|
+-4 Mass Storage (480 Mb/s, 200mA)
Verbatim STORE N GO 072125AD020B8F58
Once done do:
to safely remove storage devices.
Serial Download
Close J17 and J20 jumpers and open J16 to enable serial download. Connect the board with the source machine (i.e. the machine you are downloading the images from) by using the board's USB type C OTG header (J35).
Power on the board.
From source machine check if an USB device for serial download is detected:
Output:
uuu (Universal Update Utility) for nxp imx chips -- lib1.5.141
Connected Known USB Devices
Path Chip Pro Vid Pid BcdVersion
==================================================
1:1 MX865 SDPS: 0x1FC9 0x0146 0x0002
Here we see a device is detected. Then type:
And wait for the download and flash of eMMC to finish.
Kernel Linux tests
| Status | Test | Note |
|---|---|---|
| OK | Ethernet 0 (J41) | see note1 |
| OK | USB 2.0 (J33) | tested with USB stick |
| OK | SD card (J16 closed) | boot system from SD card |
| OK | eMMC card (J16 open) | boot system from eMMC |
| OK | UART 232 ttyLP1 (J38) | see note2 |
| OK | UART 485 ttyLP4 (J39) | see note3 |
| OK | Linux Console (J3) | |
| OK | WIFI | see note4 |
| OK | BLUETOOTH | see note5 |
| OK | RTC | see note6 |
| OK | Reboot | |
| OK | Reboot button | |
| OK | LVDS | see note7 |
| OK | Backlight | see note8 |
| OK | Touchscreen | see note9 |
| OK | Audio | see note10 |
| OK | CAN 0 (J36) | see note11 |
| TBT | PCIe (KEY E) | see note12 |
Note
Note 1
Connect board's ethernet with your machine's one.
On your machine launch iperf3 server by typing:
On board launch iperf3 in client mode:
Using the IP address of your server machine.
Output:
Connecting to host 192.168.10.1, port 5201
[ 5] local 192.168.10.85 port 47390 connected to 192.168.10.1 port 5201
[ ID] Interval Transfer Bitrate Retr Cwnd
[ 5] 0.00-1.00 sec 12.2 MBytes 103 Mbits/sec 0 188 KBytes
[ 5] 1.00-2.00 sec 11.1 MBytes 93.3 Mbits/sec 0 188 KBytes
[ 5] 2.00-3.00 sec 11.0 MBytes 92.3 Mbits/sec 0 188 KBytes
[ 5] 3.00-4.00 sec 11.5 MBytes 96.5 Mbits/sec 0 188 KBytes
[ 5] 4.00-5.00 sec 10.9 MBytes 91.2 Mbits/sec 0 188 KBytes
[ 5] 5.00-6.00 sec 11.2 MBytes 94.4 Mbits/sec 0 188 KBytes
[ 5] 6.00-7.00 sec 11.4 MBytes 95.4 Mbits/sec 0 188 KBytes
[ 5] 7.00-8.00 sec 10.9 MBytes 91.2 Mbits/sec 0 188 KBytes
[ 5] 8.00-9.00 sec 11.2 MBytes 94.4 Mbits/sec 0 188 KBytes
[ 5] 9.00-10.01 sec 11.2 MBytes 93.1 Mbits/sec 0 188 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval Transfer Bitrate Retr
[ 5] 0.00-10.01 sec 113 MBytes 94.7 Mbits/sec 0 sender
[ 5] 0.00-10.03 sec 112 MBytes 94.1 Mbits/sec receiver
iperf Done.
Note 2
Connect TX/RX PIN connector J21 to the UART 232 port From terminal launch command:
Verify that the characters written from keyboard are echoed in terminal.
Note 3
Tested with other RS485 device connected with command:
Be sure to launch the command test_serial2 on both devices to see the communication between devices on the terminal:
Device = /dev/ttyLP4, Baudrate = 115200
Open Port
sent: [Test PACKETs 0#]
received: [Test PACKETs 0#]
sent: [Test PACKETs 1#]
received: [Test PACKETs 1#]
sent: [Test PACKETs 2#]
received: [Test PACKETs 2#]
sent: [Test PACKETs 3#]
received: [Test PACKETs 3#]
sent: [Test PACKETs 4#]
received: [Test PACKETs 4#]
...
Note 4
Close jumper J12 on position 1-2 before boot to enable pan9028 Wifi/BT module or close it on position 2-3 to enable PCIe Wifi/BT module.
Sample commands for wifi testing:
modprobe moal mod_para=nxp/wifi_mod_para.conf
ifconfig mlan0 up
iw dev mlan0 scan | grep SSID
wpa_passphrase SSID PASSWORD > /etc/wpa_supplicant.conf
wpa_supplicant -imlan0 -Dnl80211 -c/etc/wpa_supplicant.conf -B
udhcpc -imlan0
Note 5
Close jumper J12 on position 1-2 before boot to enable pan9028 Wifi/BT module or close it on position 2-3 to enable PCIe Wifi/BT module.
Commands for bluetooth testing:
Note 6
Set a time and date to the clock:
Turn off the system and power it back on. Once it booted check that the date is the same:
Note 7
Type:
to show weston, if not visible. Then:
gst-launch-1.0 -v videotestsrc ! capsfilter caps="video/x-raw, width=1024, height=600" ! autovideosink
Note 8
Tested with command:
where n is an integer from 0 to 100
Note 9
Tested with command:
Note 10
Record an audio file with command:
then play and check with command:
Note 11
Connect J23 or J24 header to another board CAN header (or simply connect together J23 and J24 on the same board) and configure related can links on both ends of the connection:
End A:
End B (for example on other board, can1):
Enable interfaces on both ends:
End A:
End B (for example on other board, can1):
Make End A listen:
Send a frame from End B:
Check output on End A:
Do the same from B to A (make B listen and A send a frame). When done on same board the command sequence is:
ip link set can0 type can bitrate 125000
ip link set can1 type can bitrate 125000
ifconfig can0 up
ifconfig can1 up
cantest can0 &
cantest can1 5A1#11.2233.44556677.88
sleep 1
cantest can1 &
cantest can0 5A1#11.2233.44556677.88
Note 12
Tested with SSD PCIe device. Check with lspci:
Output:
00:00.0 PCI bridge: Synopsys, Inc. DWC_usb3 / PCIe bridge (rev 01)
01:00.0 Non-Volatile memory controller: Transcend Information, Inc. NVMe PCIe SSD 110S/112S/120S/MTE300S/MTE400S/MTE652T2 (DRAM-less) (rev 03)
And with lsblk:
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINTS
mmcblk2 179:0 0 7.3G 0 disk
|-mmcblk2p1 179:1 0 256M 0 part
`-mmcblk2p2 179:2 0 4.8G 0 part
mmcblk2boot0 179:32 0 4M 1 disk
mmcblk2boot1 179:64 0 4M 1 disk
mmcblk1 179:96 0 29.1G 0 disk
|-mmcblk1p1 179:97 0 256M 0 part
`-mmcblk1p2 179:98 0 4.8G 0 part /
nvme0n1 259:0 0 119.2G 0 disk
`-nvme0n1p1 259:1 0 119.2G 0 part
Try mounting on some point /dev/nvme0n1p1 and do a
write and read test.
