Test Sheet: MicroDev
Yocto Version
This test sheet targets the scarthgap release of the ST BSP. If you are working on a different Yocto version, refer to the corresponding test sheet on the meta-engicam-st branch for your release.
Test Sheet MicroGea STM32MP135 — MicroDev
Kernel
| Status | Test | Notes |
|---|---|---|
| OK | Ethernet | |
| OK | USB | |
| OK | eMMC | |
| TBT | Display | |
| TBT | UART 232 | ttySTM1 |
| TBT | UART 485 | ttySTM2 |
| OK | Linux Console | ttySTM0 |
| TBT | CANBUS1 | can0 |
| TBT | Touchscreen | |
| TBT | Backlight Control | |
| N/A | WIFI | |
| N/A | Bluetooth | |
| OK | UMTS |
UART 232

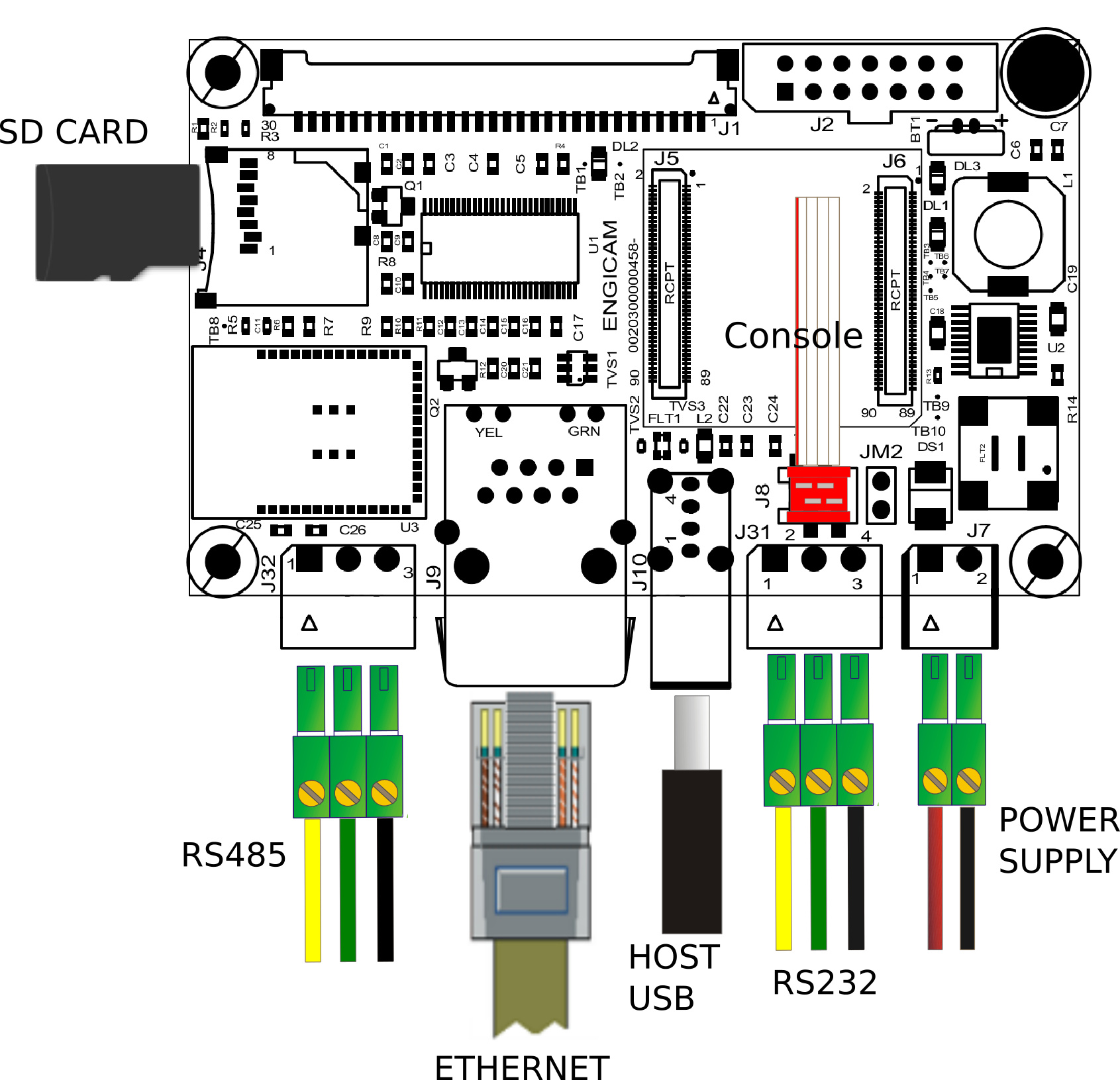

Connect TX/RX PIN connector to the UART 232 port on J31. From terminal run minicom:
Disable Hardware Flow Control and set Serial Device to /dev/ttySTM1. Check that characters typed from keyboard are echoed in the terminal.
UART 485
Tested /dev/ttySTM2 with another RS485 device. Configure minicom:

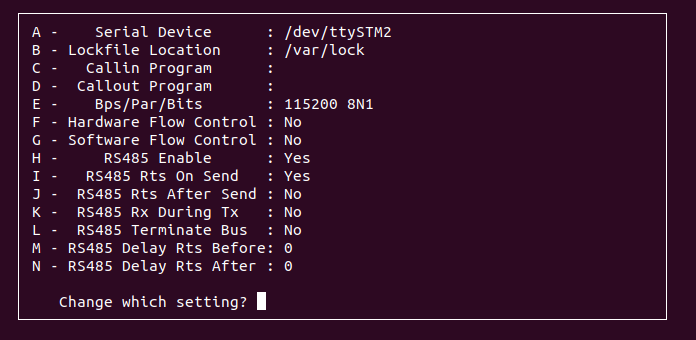

Configure the Serial Port Setup as shown:
CAN Interfaces
Connect CANBUS pins on J2 to a compatible transceiver.
ip link set can0 type can bitrate 125000
ifconfig can0 up
cansend can0 123#1122334455667788
candump can0
Backlight Control
echo 7 > /sys/class/backlight/panel-backlight/brightness
echo 0 > /sys/class/backlight/panel-backlight/brightness
Touchscreen
Expected output:
Press 0 and Enter, then touch the screen.
Test Sheet MicroGea STM32MP157 — MicroDev
Kernel
| Status | Test | Notes |
|---|---|---|
| OK | Ethernet | |
| OK | USB | |
| OK | Nand | |
| TBT | Display | |
| TBT | UART 232 | ttySTM1 |
| TBT | UART 485 | ttySTM2 |
| OK | Linux Console | ttySTM0 |
| TBT | CANBUS1 | can0 |
| TBT | Touchscreen | |
| TBT | Backlight Control | |
| OK | WIFI | |
| OK | Bluetooth | |
| OK | UMTS |
UART 232
Connect TX/RX PIN connector to the UART 232 port on J31. From terminal run minicom:
Disable Hardware Flow Control and set Serial Device to /dev/ttySTM1. Check that characters typed from keyboard are echoed in the terminal.
UART 485
Tested /dev/ttySTM2 with another RS485 device. Configure minicom:
Configure the Serial Port Setup as shown:
Wi-Fi
ifconfig eth0 down
echo "nameserver 8.8.8.8" > /etc/resolv.conf
ifconfig wlan0 up
iw dev wlan0 scan | grep SSID
wpa_passphrase SSID password > /etc/wpa_supplicant.conf
wpa_supplicant -iwlan0 -Dnl80211 -c/etc/wpa_supplicant.conf -B
udhcpc -i wlan0
Bluetooth
systemctl start bluetooth
brcm_patchram_plus --patchram /lib/firmware/brcm/BCM43430A1.hcd --enable_hci \
--no2bytes --tosleep 1000 --baudrate 3000000 \
--use_baudrate_for_download /dev/ttySTM3 &
hciconfig hci0 up
bluetoothctl
agent on
scan on
CAN Interfaces
Connect CANBUS pins on J2 to a compatible transceiver.
ip link set can0 type can bitrate 125000
ifconfig can0 up
cansend can0 123#1122334455667788
candump can0
Backlight Control
echo 7 > /sys/class/backlight/panel-backlight/brightness
echo 0 > /sys/class/backlight/panel-backlight/brightness
Touchscreen
Expected output:
Press 0 and Enter, then touch the screen.
